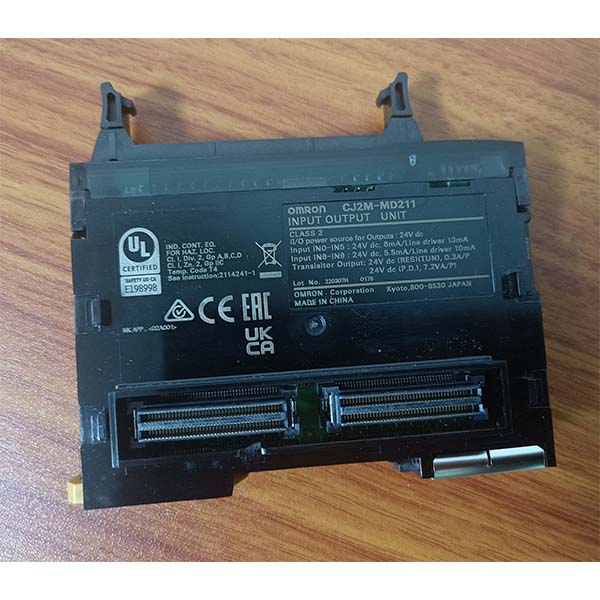

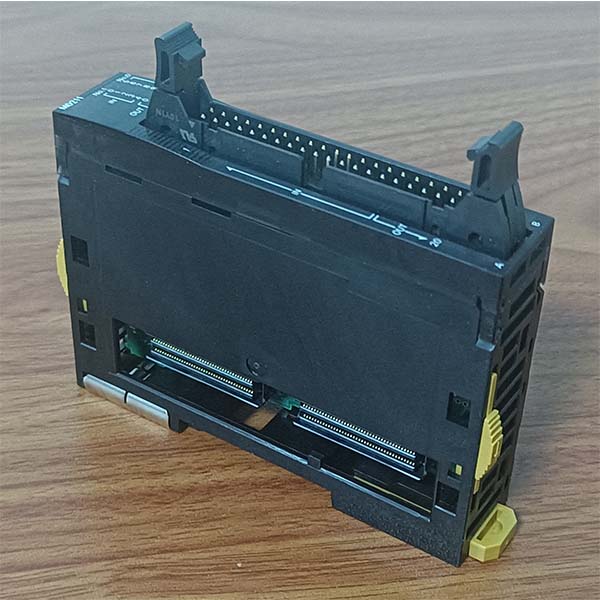

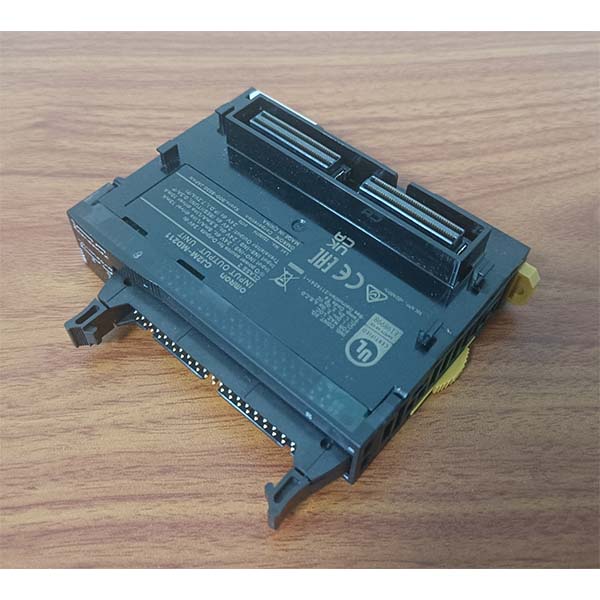

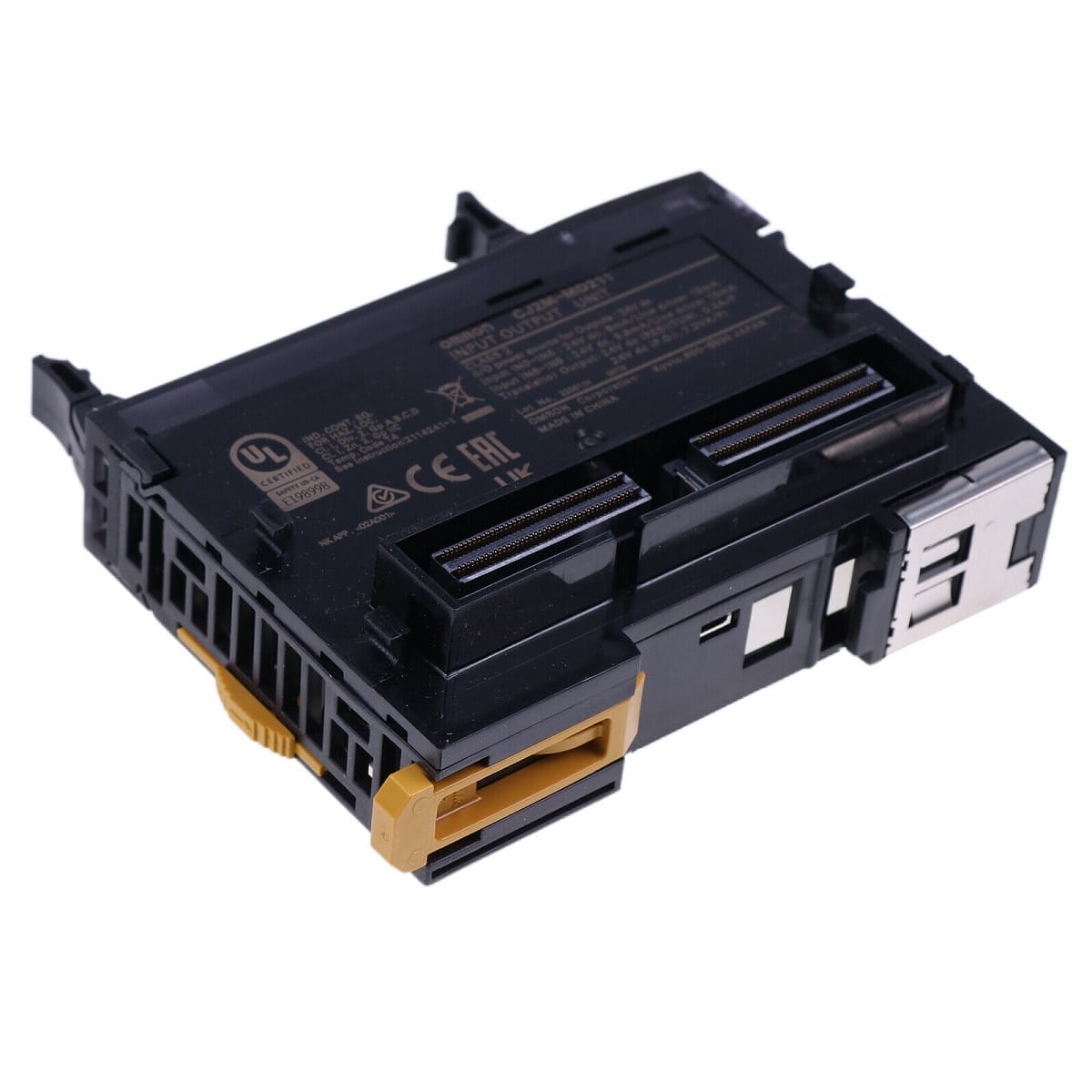

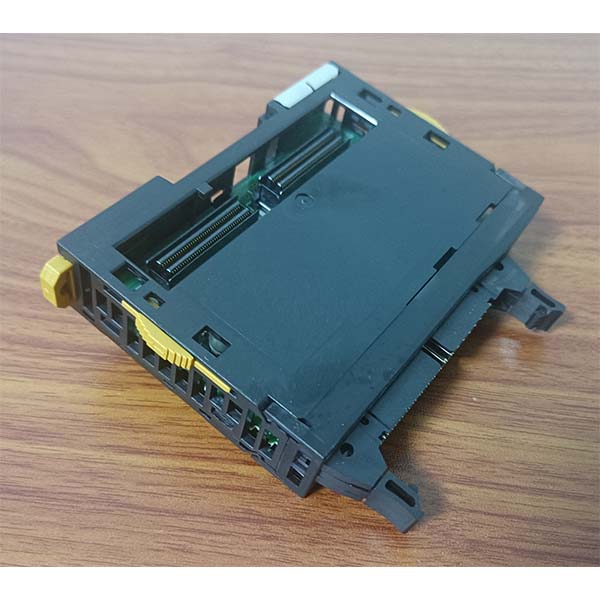

Pulse I/O Module for CJ2M, NPN with 10 inputs (four interrupt/quickresponse and two high-speed counter inputs) and 6 outputs (two pulse and two PWM outputs)
| I/O system | CJ CPU Bus |
| Expansion unit type | CPU Pulse I/O Unit |
| Type of module | Positioning |
| Digital input type | Incremental encoder, Interrupt, NPN, Voltage pulse |
| Digital output type | NPN, PWM, Voltage pulse |
| Number of encoder input channels | 2 |
| Number of pulse output channels | 6 |
| Max. pulse output frequency | 2 kHz |
| I/O connection type | MIL (plug not included) |
| Number of I/O connectors | 1 |
| Detachable I/O connector | YES |
| Suitable for safety functions | NO |
| Communication port(s) | None |
| Number of IOV (V+) terminals | 12 |
| Number of IOG (V-) terminals | 12 |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 20 mm |
| Product Depth (unpacked) | 66.3 mm |
| Product Weight (unpacked) | 70 g |
****************************************
Dongguan JoyTo Technical Co., Ltd is a professional provider of industrial control devices, automation parts and electronic components.
Our company mainly focus is to provide customers with products and solutions for instrumentation, automation and optimization of industrial processes, such as: Programmable logic controller (PLS’s), Variable frequency drives (VFD’s), Human machine interface (HMIs), Motion controllers, Sensors, Low voltage circuit breakers, AC servo motors, Relay, Industrial power supply, Touch screen, IGBT modules, temperature transmitters, pressure transmitters, flow transmitters, flow meters and thermal analysis instruments.
We can source and supply spare parts with short lead times, assisted by our supply partners and from local stocks.
Our aim is to minimise downtime, whilst providing great customer service and technical support.
We have large original brand new stocks , most PLC , inverter , relay , IGBT module , VFD , sensor , encoder , power supply , circuit breaker , contactor , etc.
Welcome to enquiry, we will always support you the best price with perfect quality , fast shipping!
