New and Original Allen-Bradley 1769-SM2 Compact I/O to DSI Module for PowerFlex 4 & 40 AC drives, In Stock

Compact I/O to DSI Module provides a direct 1769 platform connection for PowerFlex 4 and 40 AC drives, other DSI-based host devices, and Modbus RTU-based host devices such as PowerFlex 70, 700 and 700S AC drives equipped with 20-COMM-H adapters

Welcome to inquiry - JOYTO
Hello dear friend, many thanks for your enquiry! Please kindly advise the detailed model no. and QTY that you need, so we can quote you correctly and offer you a better price!

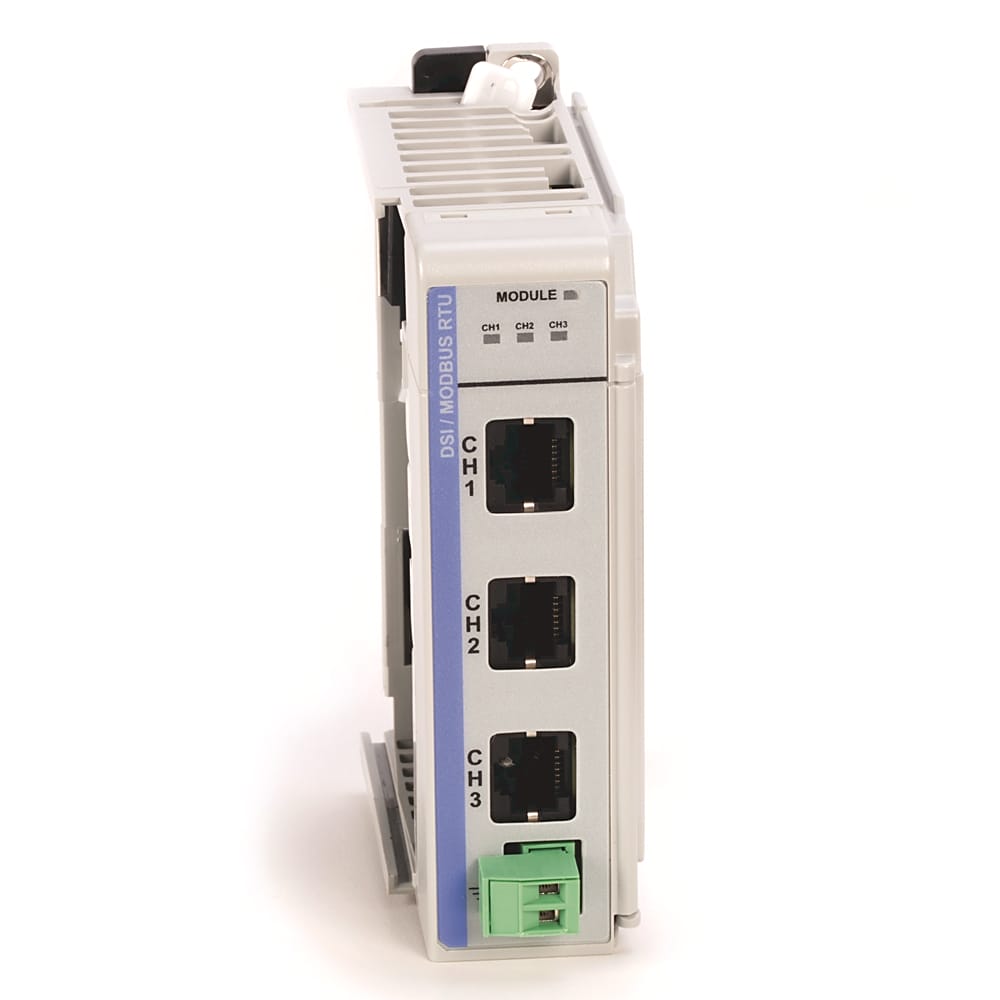

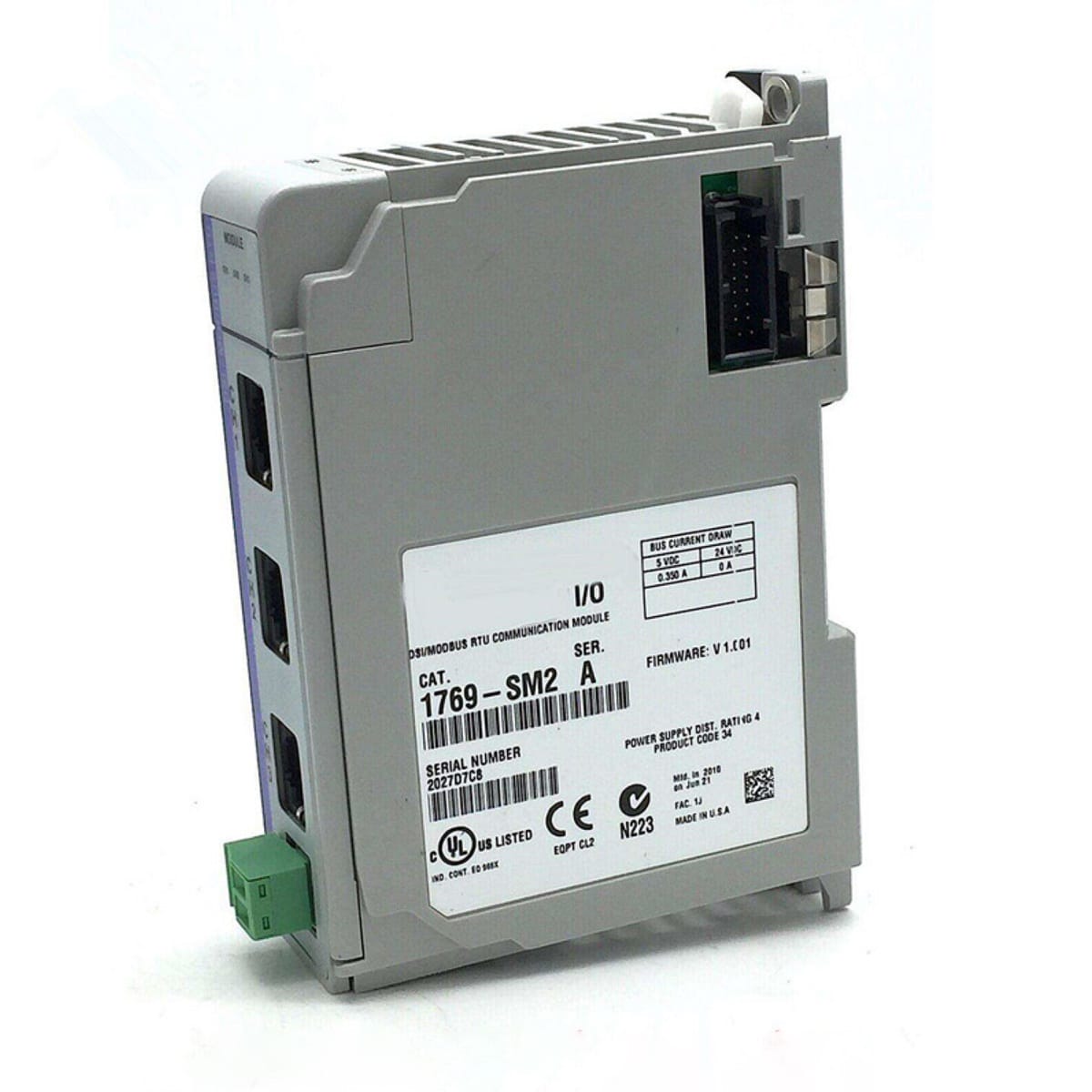

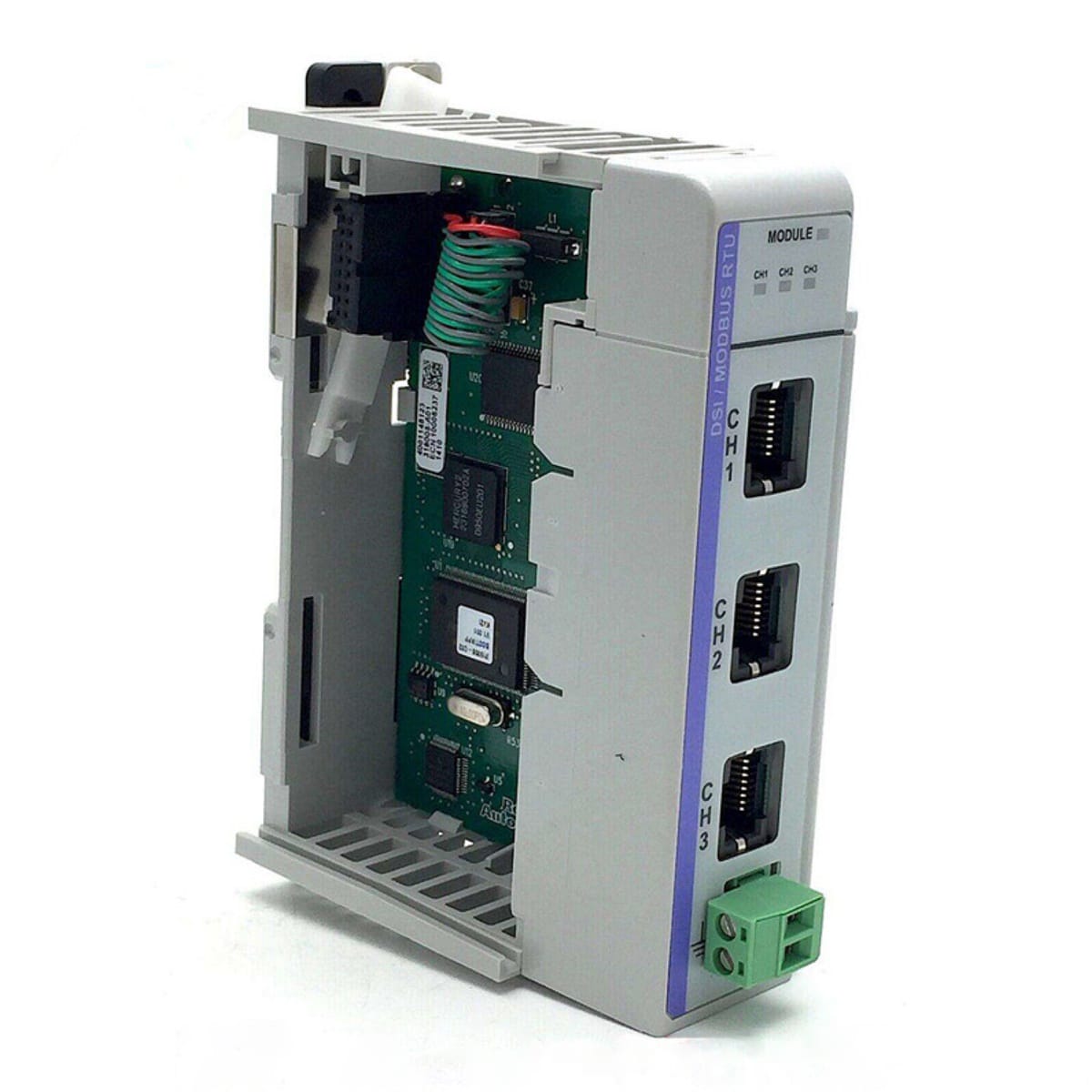

The Allen-Bradley 1769-SM2 is a Compact I/O module. This module is used to enable a CompactLogix or MicroLogix 1500 controller assembly to communicate over Drive Serial Interface (DSI) or implement MODBUS communication. It can be used for communicating with PowerFlex 4 class drive as well as PowerFlex 7 class drives via the 20-COMM-H RS485. The 1769-SM2 support Single and Multi-drive operating mode.



Product Description: Compact I/O DSI / MOODBUS communication module
Operating Shock: 30g, 11 ms
Vibration: 5g, 10 to 500 Hz
Storage Temperature: -40…85 °C (-40…185 °F)
Operating Temperature: -10…50 °C (14…122 °F)
Mounting: DIN Rail; Panel Mounting
Current draw: 350 mA @ 5Vdc and; 0 mA @ 24Vdc supplied by the Compact I/O Power Supply
MODBUS Transfer speed: 300, 600, 1200, 2400, 4800, 9600, 19200, or 38400 bps
DSI Data Transfer speed: 19200 bps
Supported protocols: Drive Serial Interface (DSI); MODBUS RTU
Compatible PowerFlex drive: PowerFlex 4 and PowerFlex 7 class drives
Compatible controllers: CompactLogix; MicroLogix 1500
Module Width Single Slot



****************************************
