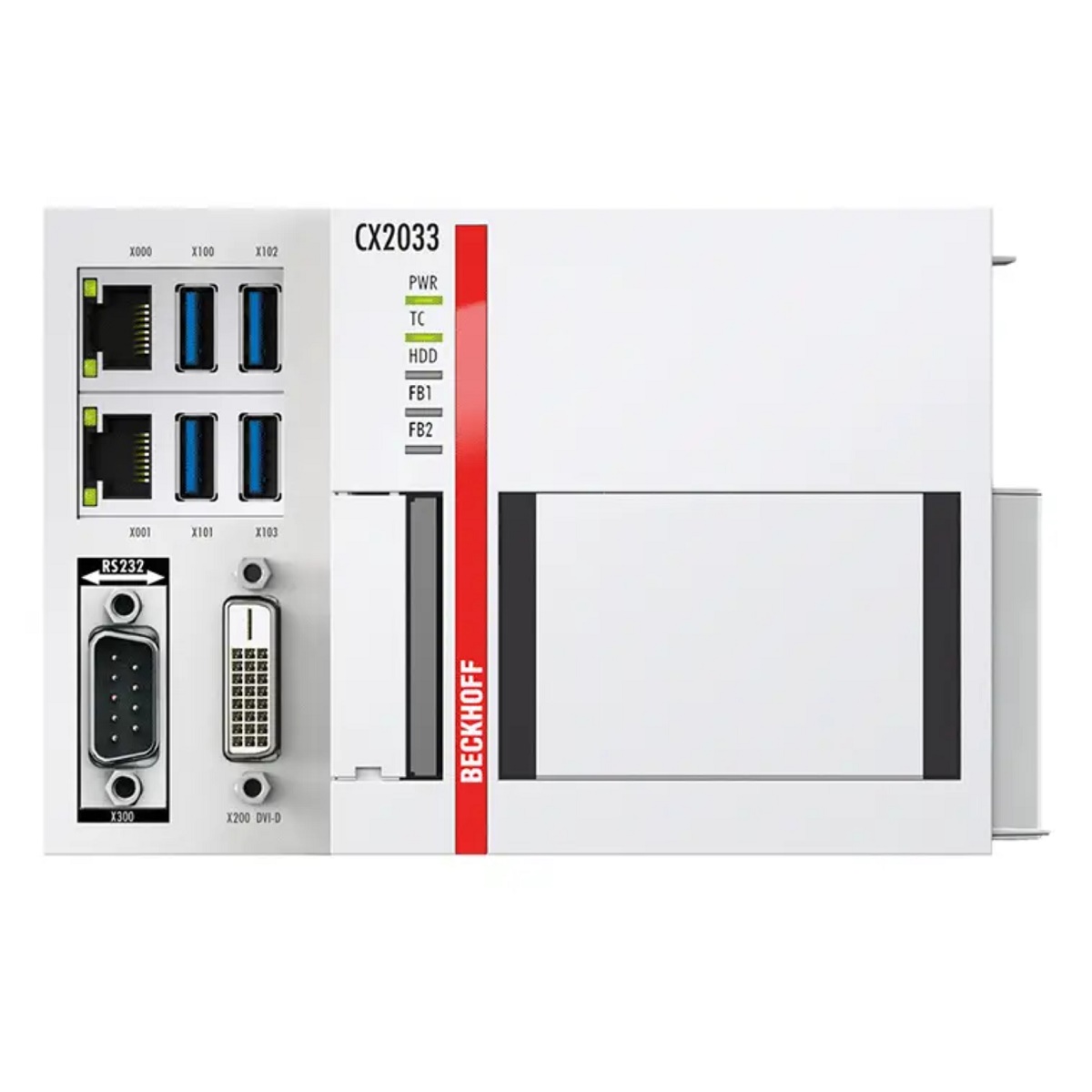

| Technical data | CX2033 |
|---|---|
| Processor | AMD Ryzen™ V1202B 2.3 GHz |
| Number of cores | 2 |
| Flash memory | slot for CFast card, card not included |
| Main memory | 8 GB DDR4 RAM (expandable ex factory to 16 GB) |
| Persistent memory | 128 kB NOVRAM integrated |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 3.0, 1 x optional interface |
| Cooling | passive cooling, optionally with active cooling ex factory |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD |
| Control software | TwinCAT 2 runtime TwinCAT 3 runtime (XAR) |
| I/O connection | via power supply module (E-bus or K-bus, automatic recognition) |
| Power supply | 24 V DC (-15%/+20%) |
| Max. power consumption | 42 W |
| Dimensions (W x H x D) | 144 mm x 99 mm x 91 mm |
| Weight | approx. 1165 g |
| Relative humidity | 95%, no condensation |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protection rating | IP20 |
| Approvals/markings | CE, UL |
****************************************
Dongguan JoyTo Technical Co., Ltd is a professional provider of industrial control devices, automation parts and electronic components.
Our company mainly focus is to provide customers with products and solutions for instrumentation, automation and optimization of industrial processes, such as: Programmable logic controller (PLS’s), Variable frequency drives (VFD’s), Human machine interface (HMIs), Motion controllers, Sensors, Low voltage circuit breakers, AC servo motors, Relay, Industrial power supply, Touch screen, IGBT modules, temperature transmitters, pressure transmitters, flow transmitters, flow meters and thermal analysis instruments.
We can source and supply spare parts with short lead times, assisted by our supply partners and from local stocks.
Our aim is to minimise downtime, whilst providing great customer service and technical support.
We have large original brand new stocks , most PLC , inverter , relay , IGBT module , VFD , sensor , encoder , power supply , circuit breaker , contactor , etc.
Welcome to enquiry, we will always support you the best price with perfect quality , fast shipping!
