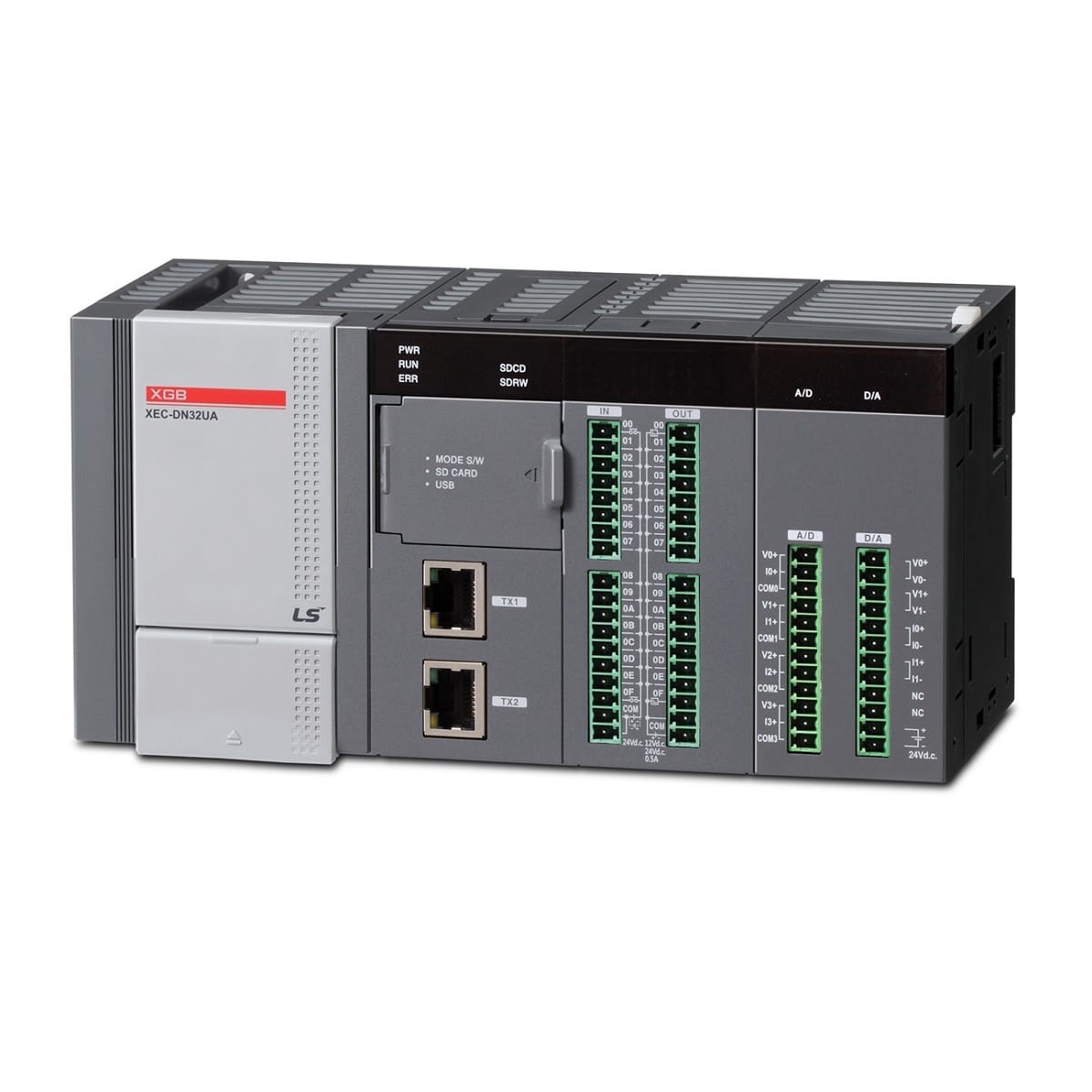

New and Original LS XEC-DN32UA XGB PLC 16 Inputs 16 NPN O/P AD/DA, In Stock

XGB SERIES Base unit, Standard,

Welcome to inquiry - JOYTO
Hello dear friend, many thanks for your enquiry! Please kindly advise the detailed model no. and QTY that you need, so we can quote you correctly and offer you a better price!

* Ultimate Performance AC110/240V power supply
* 16 V DC 24 input
* 16 Transistor (NPN) output
* 8 channel built-in analog Analog input 4 Ch
* 14 bit resolution Analog output 4 Ch
* 14 bit resolution Processing speed:
* 6 0ns/step Program capacity
* 32Kstep Program memory
* 384Kbyte Max. I/O points
* (Main + Expansion 10 stages) 352 points
* Dual port Ethernet: IEEE 802.3 RS-232, RS-485
* Datalog High Speed Counter:
* 1-phase : 100KHz 8 channels
* 2-phase : 50KHz 4 channels
* Pulse catch, Input filter, External interrupt, PID control, High-speed counter, Positioning, RTC



XGB series is the micro PLC that offers maximum automation at minimum cost. With its high performance and functionality, it can support from simple control to complex task. XGB offers convenient user interface with various network diagnosis & monitoring functions and back-up function.

1. Integrated programming environment
– Enhanced user interface with XG5000/XG-PD
– Various monitoring functions.
– Network diagnosis and monitoring
2. Optimum communication environment
– Powerful communications: Built-in RS-232C / 485, 2 Expansions for communication
– Network configuration via Ethernet and Cnet I/F

Available in 3 versions:
• XBM micro PLC slim with LADDER programming, Instruction List and 256 I/O points
• XBC mini PLC with LADDER programming, Instruction List and 284 I/O points
• XEC mini plc with LADDER programming, Instruction List, SFC, ST, IEC-1131 and 38 I/O points

Key benefits:
• Compact
• Cost-effective
• LADDER and IEC-1131 programmable
• From 38 to 284 I/O points
• From 94 ns/step to 240 ns/step
• From 4 to 200 Ksteps

****************************************

Dongguan JoyTo Technical Co., Ltd is a professional provider of industrial control devices, automation parts and electronic components.

Our company mainly focus is to provide customers with products and solutions for instrumentation, automation and optimization of industrial processes, such as: Programmable logic controller (PLS’s), Variable frequency drives (VFD’s), Human machine interface (HMIs), Motion controllers, Sensors, Low voltage circuit breakers, AC servo motors, Relay, Industrial power supply, Touch screen, IGBT modules, temperature transmitters, pressure transmitters, flow transmitters, flow meters and thermal analysis instruments.

We can source and supply spare parts with short lead times, assisted by our supply partners and from local stocks.

Our aim is to minimise downtime, whilst providing great customer service and technical support.

We have large original brand new stocks , most PLC , inverter , relay , IGBT module , VFD , sensor , encoder , power supply , circuit breaker , contactor , etc.

Welcome to enquiry, we will always support you the best price with perfect quality , fast shipping!
