Siemens 6EP3333-6SB00-0AY0 Power Supply
,

New and Original Siemens 6EP3333-6SB00-0AY0 Power Supply, Switched Mode, DIN Rail, 100 to 240V ac ac Input, 24V dc dc Output, 4A Output, 96W, In Stock

LOGO!POWER 24 V / 4 A stabilized power supply input: 100-240 V AC output: 24 V DC / 4 A

Welcome to inquiry - JOYTO
Hello dear friend, many thanks for your enquiry! Please kindly advise the detailed model no. and QTY that you need, so we can quote you correctly and offer you a better price!

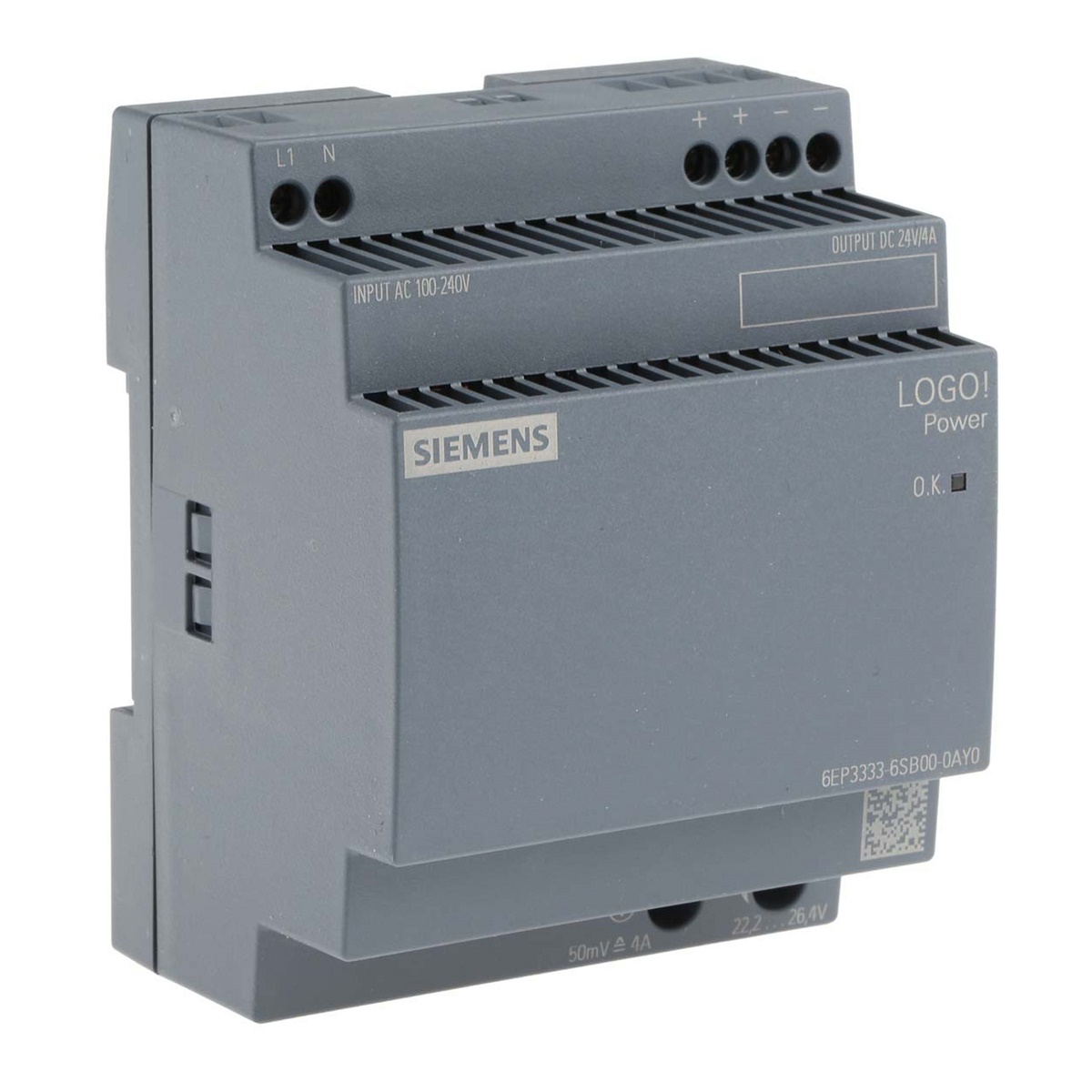

Siemens Switch Mode DIN Rail Power Supply, 4A, 96W – LOGO!POWER Series – 6EP3333-6SB00-0AY0

This power supply unit (PSU) from Siemens is designed to provide electrical energy to DIN-rail-connected devices. The component works by converting alternating current (AC) voltage to the direct current (DC) voltage required for industrial equipment. It effectively manages power delivery across the entire load range and ensures low power loss in no-load operations for high levels of efficiency. Thanks to a built-in electrical fuse, the unit is protected from overcurrent and short circuits. It also supports parallel switching for enhanced performance. Thanks to compact dimensions of 90 (height) x 72 (width) x 53mm (depth), this is a reliable solution for applications where space is limited.

• Mean time between failures (MTBF) of 2,391,480 hours for reliable, long-term performance
• Simple snap-on mounting on DIN rails saves time and effort
• Double-layer insulation eliminates the need for an earth connection and improves electrical safety
• Screw termination type for easy installation without the need for specialist tools



Attribute
Value
Type Switched Mode
Output Voltage 24V dc
Output Current 4A
AC or DC Input Voltage ac
AC or DC Output Voltage dc
Input Voltage 100 → 240V ac
Power Rating 96W
Electrical Phase 1
Number of Outputs 1
Height 90mm
Width 72mm
Depth 53mm
Series LOGO!POWER
Maximum Temperature +70°C
MTBF 2391480h
Load Regulation 0.1%
Special Features Flexible Deployment, Flexible Mounting, Global Use, High Energy Efficiency, Load Monitoring, Low Width, Reliable, Wide Portfolio
Mounting Type DIN Rail Mount
Minimum Temperature -25°C
Efficiency 89%
Ripple And Noise 200mV Pk-Pk
Output Voltage Adjustment Range 22.2 → 26.4V



****************************************
