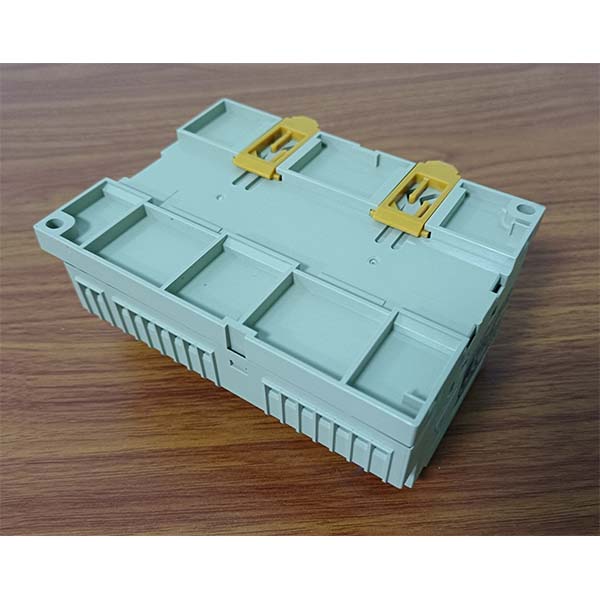

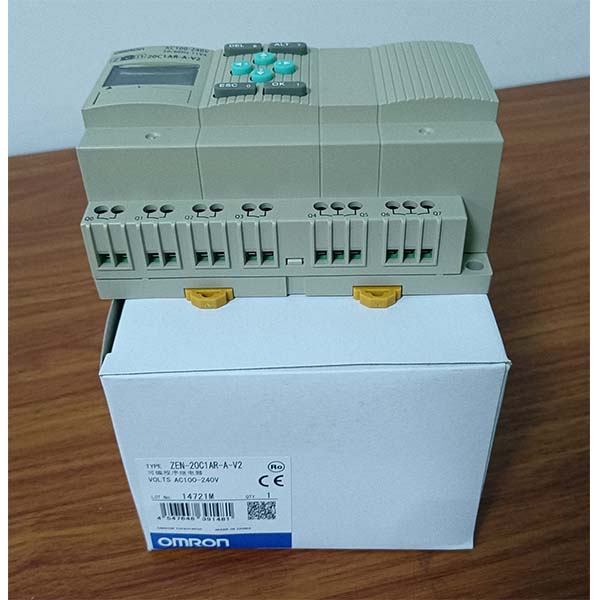

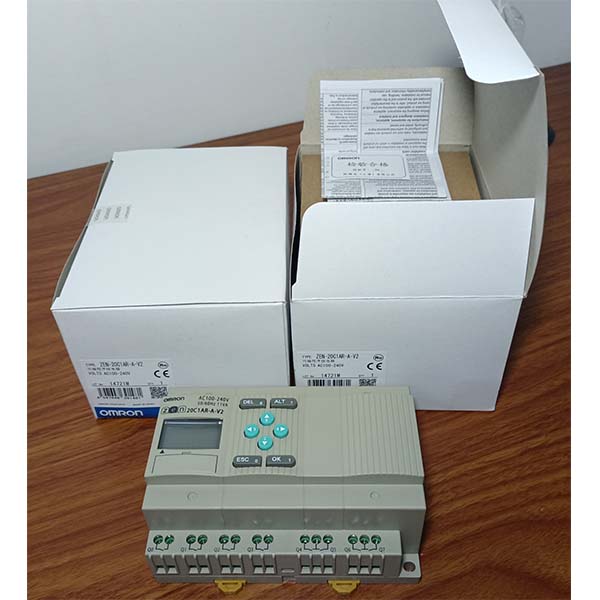

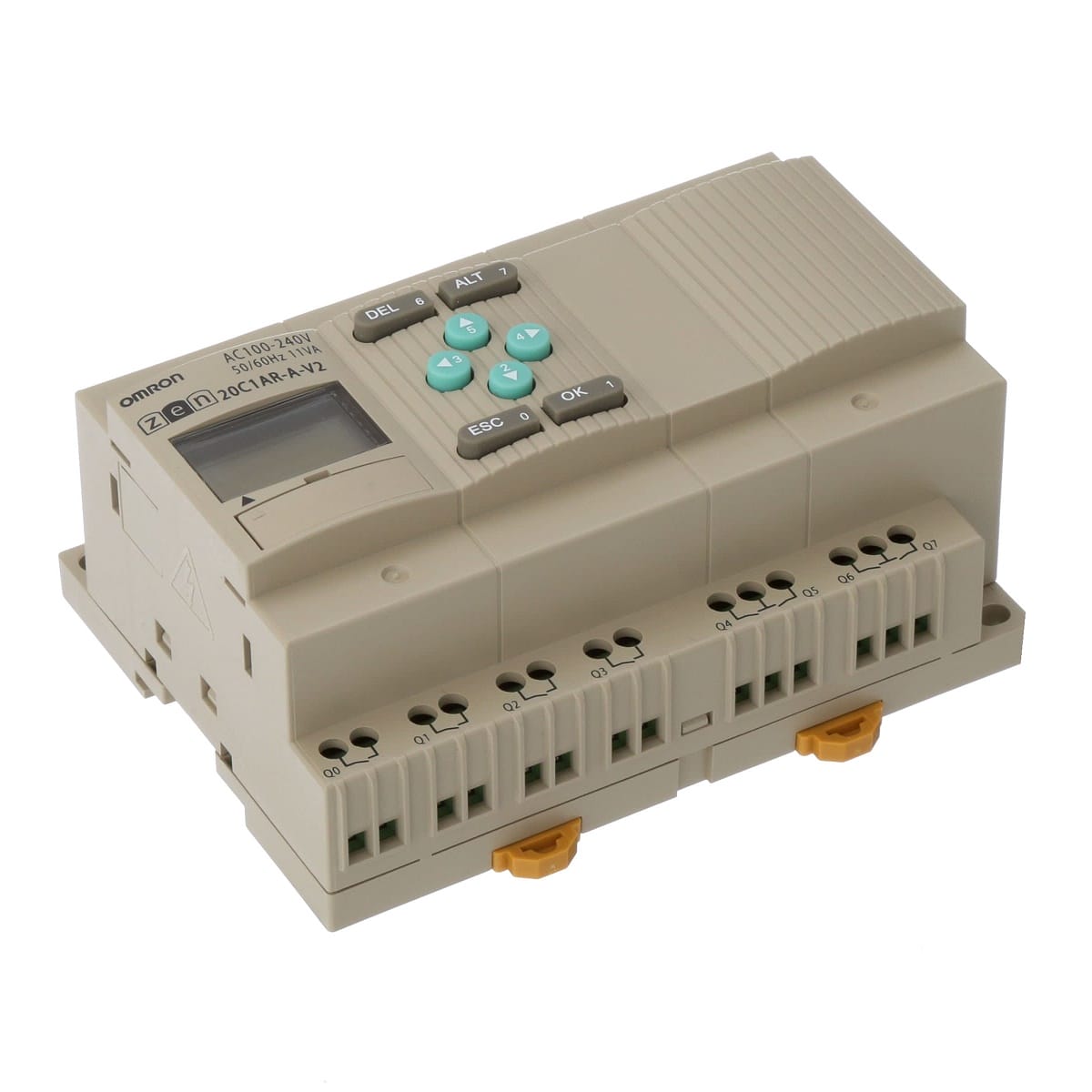

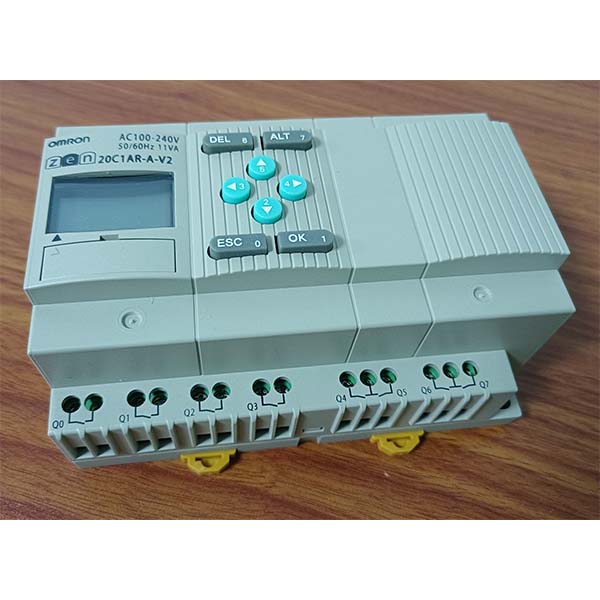

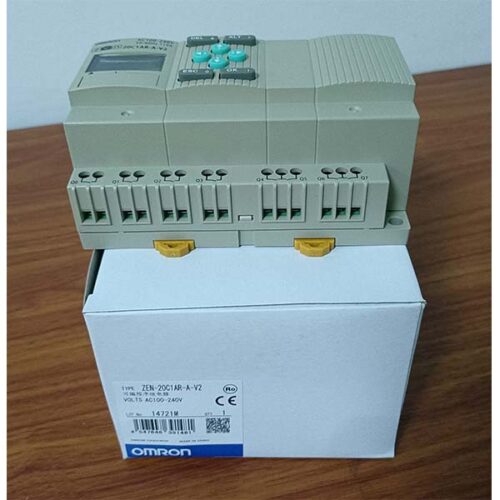

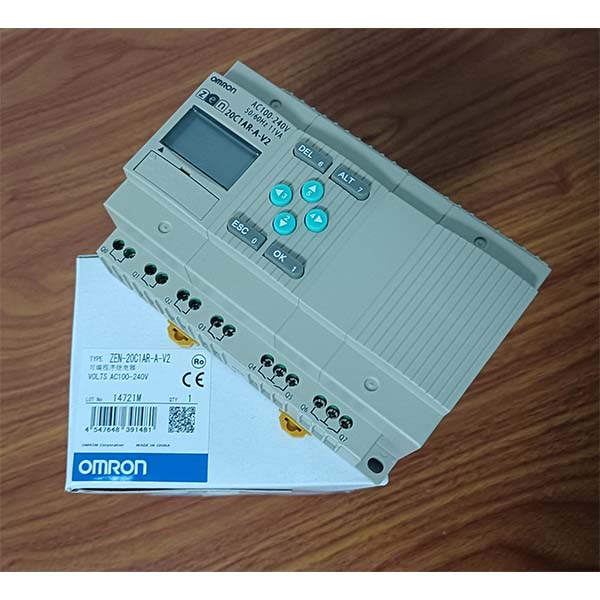

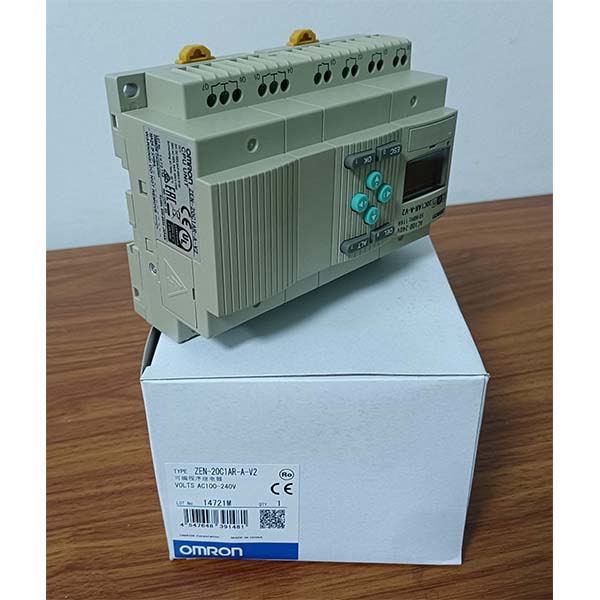

A compact solution for small-scale control applications that blends simple, flexible programming and reliable easy performance. Omron’s ZEN nano controller offers the ideal mix of flexibility, functionality and cost for a wide range of applications.
Here’s Why:
- Combines the Functionality of Separate Timers, Counters and Relays
- Provides Flexible Programming without Rewiring
- AC or DC Inputs with 8 A Relay Outputs
- Offers Multiple Expansion Options for Future Needs
- Exceptional Value for the Cost of Installing Just Three Relays
- Simple Ladder Logic Programming Using ZEN Support Software or Operation Buttons on Front Panel (LCD Models Only)
- Save Time By Using the Memory Cassette to Transfer Programs Between ZEN Units
Features:
- Compact, CPU and Expansion Units
- 8 Timers Support 4 Types of Operation and 3 Timing Ranges Available
- 4 Holding Timers Hold Data During Power Interruptions
- 8 Counters Can Be Switched Between Incremental and Decremental
- 8 Weekly Timers for Day/Time Control
- 8 Calendar Timers for Seasonal Control
- 10 I/O and 20 I/O CPUs Expandable to 34 and 44 I/O
- 16 Holding Bits Retain ON/OFF Status in Case of Power Failure; No Need for Extra Circuitry
- ZEN Battery Provides Controller CPU with 10 Years of Memory Protection
- Accurate Analog Inputs ±1.5% FS
- Flexible Mounting — Either Horizontal or Vertical
- Models with LCD Display Also Feature Real-Time Clock/Calendar and Programming Buttons
- Advanced High-Value Counting with 8-Digit Counter and 8-Digit Comparators, in Addition to 16 Standard Counters
- One 150-Hz High-Speed Counter Available On Models with DC Power Supply
- Twin-Timer Operation Allows You to Set ON and OFF Times Separately, Greatly Simplifying Intermittent Operation
- Password Function Ensures Security
- Display User-Set Messages or Analog-Converted Values
- Economy CPUs Available for Limited I/O Applications
System Advantages:
- Delivers the Flexibility and Functionality of Separate Timers, Counters and Relays for Control Applications with Up to 44 I/O
- Save Time By Using the Memory Cassette to Transfer Programs Between Zen Units and Standardize Updates to End Users
- Reduce Wiring and Engineering Time Using Simple Ladder Logic Programming with the Push of a Button or Click of the Mouse
- Easily Add Up to 3 Ultra-Slim 35 mm, 8 I/O Expansion Units When More Points of Control Are Required
****************************************
